初始化
打开一个 design 文件的消息收发流程。（这是是单人模式，没有多个用户）
流程图
开始
-> fig-kiwi 格式文件
-> JOIN_START 消息 (确认用户加入房间)
-> NODE_CHANGES 消息 (获取 design 信息)
-> SCENE_GRAPH_REPLY 消息 (场景图响应)
-> USER_CHANGES 消息 (用户信息)
-> SIGNAL 消息 (服务器加载时间元数据)
-> JOIN_END 消息 (加入结束)
<- USER_CHANGES 消息 (客户端视口信息)
<- CLIENT_BROADCAST 消息 (音乐状态)
-> 各种 SIGNAL 消息 (重连密钥和序号)
<- CLIENT_RENDERED 消息 (客户端渲染完成)
-> CLIENT_BROADCAST 消息 (音乐和演示状态)
-> 最终 USER_CHANGES 消息 (用户完整信息)
初始化完成
-> 表示接收消息
<- 表示发送消息具体说明

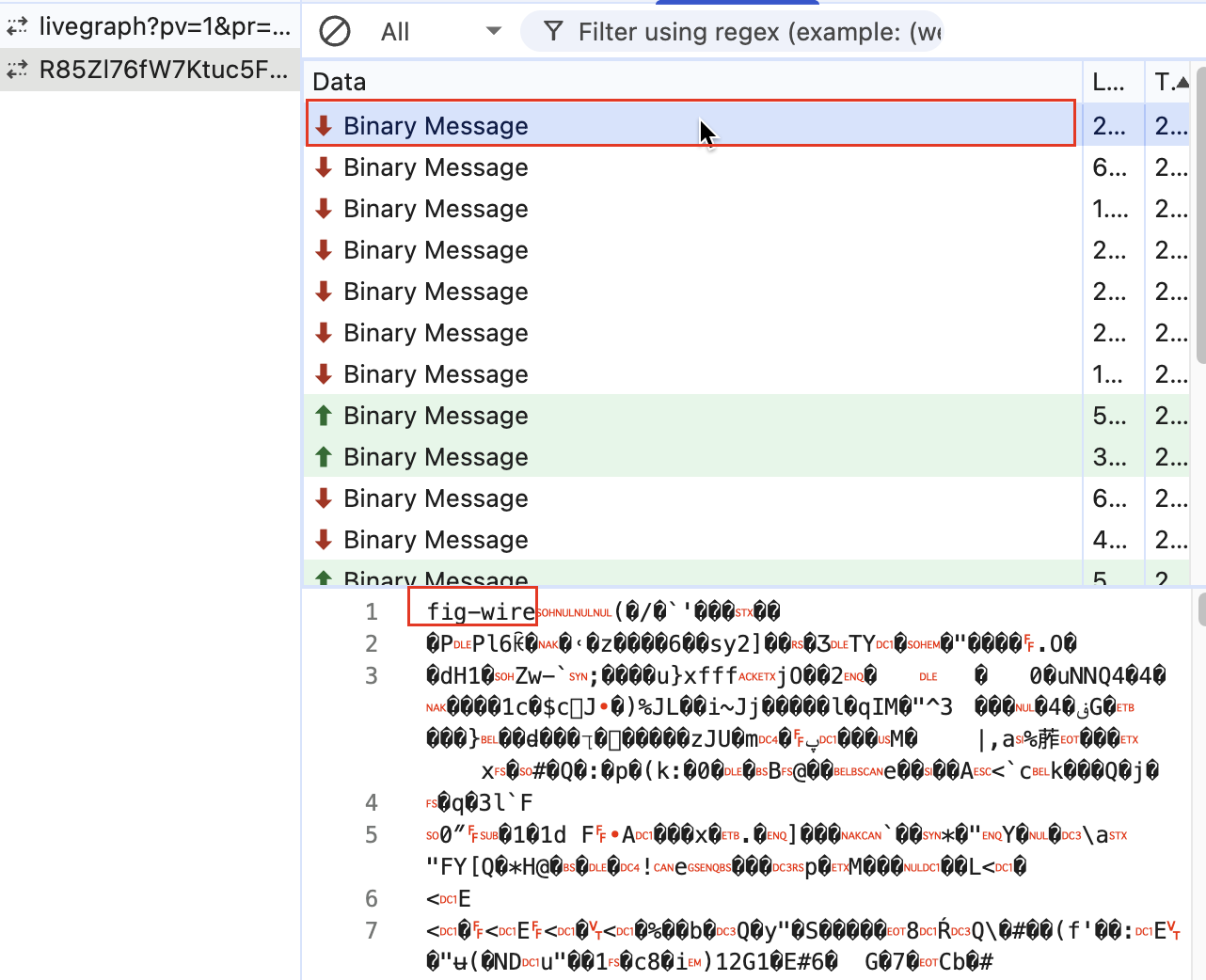

1、会先接收一个 fig-kiwi 格式的文件，暂时不明如何解析。
但它不影响后续的 design 初始化流程。
2、接收到信息，表示当前用户成功加入这个 “房间”，且告知有读写权限。
json
{
type: 'JOIN_START',
sessionID: 4,
stableSessionID: 'e0f5fc1599477fb7d11f8e7d20860315d6c3fbcc',
access: 'READ_WRITE',
fileVersion: 101
}3、拿到 design 的信息。

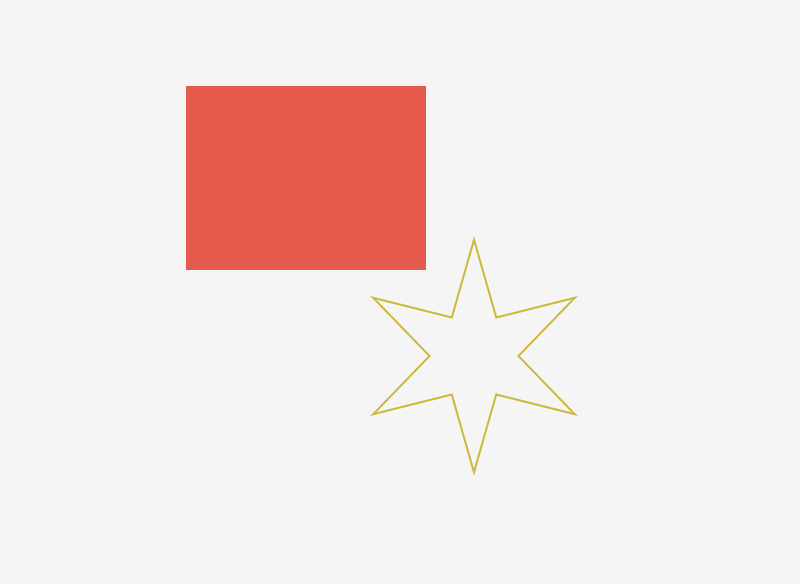

这里我的图纸是一个矩形和一个星形状，见下图：
还带了个 blobs 数组，里面是图形的二进制数据，这个是图形的 geometry 的 commands 数据，见这些图形的 commandsBlob 属性。
json
{
type: 'NODE_CHANGES',
sessionID: 4,
ackID: 0,
blobBaseIndex: 0,
reconnectSequenceNumber: 51,
nodeChanges: [
{
guid: { sessionID: 0, localID: 0 },
phase: 'CREATED',
type: 'DOCUMENT',
name: 'Document',
visible: true,
opacity: 1,
blendMode: 'PASS_THROUGH',
transform: { m00: 1, m01: 0, m02: 0, m10: 0, m11: 1, m12: 0 },
mask: false,
maskIsOutline: false,
strokeWeight: 0,
strokeAlign: 'CENTER',
strokeJoin: 'BEVEL',
documentColorProfile: 'SRGB'
},
{
guid: { sessionID: 0, localID: 1 },
phase: 'CREATED',
parentIndex: { guid: { sessionID: 0, localID: 0 }, position: '!' },
type: 'CANVAS',
name: 'Page 1',
visible: true,
opacity: 1,
blendMode: 'PASS_THROUGH',
transform: { m00: 1, m01: 0, m02: 0, m10: 0, m11: 1, m12: 0 },
mask: false,
maskIsOutline: false,
backgroundOpacity: 1,
strokeWeight: 0,
strokeAlign: 'CENTER',
strokeJoin: 'BEVEL',
backgroundColor: {
r: 0.9607843160629272,
g: 0.9607843160629272,
b: 0.9607843160629272,
a: 1
},
backgroundEnabled: true,
editInfo: {
userId: '1166195885685703702',
lastEditedAt: 1761838560,
createdAt: 0
},
editScopeInfo: {
snapshots: [
{
frames: [
{
stack: [
{
type: 'USER',
label: 'update-selection-stroke-paint-data',
editorType: 'DESIGN'
},
{
type: 'SYSTEM',
label: 'update-edit-info',
editorType: 'DESIGN'
}
]
}
],
nodeChangeFieldNumbers: [ 331 ]
}
]
}
},
{
guid: { sessionID: 0, localID: 2 },
phase: 'CREATED',
parentIndex: { guid: { sessionID: 0, localID: 0 }, position: '~' },
type: 'CANVAS',
name: 'Internal Only Canvas',
visible: false,
opacity: 1,
blendMode: 'PASS_THROUGH',
transform: { m00: 1, m01: 0, m02: 0, m10: 0, m11: 1, m12: 0 },
mask: false,
maskIsOutline: false,
strokeWeight: 0,
strokeAlign: 'CENTER',
strokeJoin: 'BEVEL',
internalOnly: true
},
{
guid: { sessionID: 2, localID: 2 },
phase: 'CREATED',
parentIndex: { guid: { sessionID: 0, localID: 1 }, position: '!' },
type: 'ROUNDED_RECTANGLE',
name: 'Rectangle 1',
visible: true,
opacity: 1,
size: { x: 120, y: 92 },
transform: { m00: 1, m01: 0, m02: 0, m10: 0, m11: 1, m12: -262 },
strokeWeight: 1,
strokeAlign: 'INSIDE',
strokeJoin: 'MITER',
fillPaints: [
{
type: 'SOLID',
color: { r: 1, g: 0.2805927097797394, b: 0.2805927097797394, a: 1 },
opacity: 1,
visible: true,
blendMode: 'NORMAL'
}
],
fillGeometry: [ { windingRule: 'NONZERO', commandsBlob: 0, styleID: 0 } ],
editInfo: {
userId: '1166195885685703702',
lastEditedAt: 1761838463,
createdAt: 1761836828
},
editScopeInfo: {
snapshots: [
{
frames: [
{
stack: [
{
type: 'USER',
label: 'update-selection-fill-paint-data',
editorType: 'DESIGN'
}
]
}
],
nodeChangeFieldNumbers: [ 38 ]
}
]
}
},
{
guid: { sessionID: 3, localID: 3 },
phase: 'CREATED',
parentIndex: { guid: { sessionID: 0, localID: 1 }, position: '"' },
type: 'STAR',
name: 'Star 1',
visible: true,
opacity: 1,
size: { x: 120, y: 120 },
transform: { m00: 1, m01: 0, m02: 84, m10: 0, m11: 1, m12: -187 },
strokeWeight: 1,
strokeAlign: 'INSIDE',
strokeJoin: 'MITER',
fillPaints: [],
strokePaints: [
{
type: 'SOLID',
color: {
r: 0.8354116678237915,
g: 0.7158792614936829,
b: 0.11821714788675308,
a: 1
},
opacity: 1,
visible: true,
blendMode: 'NORMAL'
}
],
fillGeometry: [ { windingRule: 'NONZERO', commandsBlob: 1, styleID: 0 } ],
strokeGeometry: [ { windingRule: 'NONZERO', commandsBlob: 2, styleID: 0 } ],
proportionsConstrained: true,
count: 6,
starInnerScale: 0.3819660246372223,
editInfo: {
userId: '1166195885685703702',
lastEditedAt: 1761838560,
createdAt: 1761838545
},
editScopeInfo: {
snapshots: [
{
frames: [
{
stack: [
{
type: 'USER',
label: 'update-selection-stroke-paint-data',
editorType: 'DESIGN'
}
]
}
],
nodeChangeFieldNumbers: [ 39 ]
}
]
}
}
],
blobs: [
{
bytes: Uint8Array(46) [
1, 0, 0, 0, 0, 0, 0, 0, 0, 2, 0,
0, 240, 66, 0, 0, 0, 0, 2, 0, 0, 240,
66, 0, 0, 184, 66, 2, 0, 0, 0, 0, 0,
0, 184, 66, 2, 0, 0, 0, 0, 0, 0, 0,
0, 0
]
},
{
bytes: Uint8Array(118) [
1, 0, 0, 112, 66, 0, 0, 0, 0, 2, 0, 235,
142, 66, 32, 156, 32, 66, 2, 77, 236, 223, 66, 0,
0, 240, 65, 2, 255, 213, 165, 66, 0, 0, 112, 66,
2, 77, 236, 223, 66, 0, 0, 180, 66, 2, 0, 235,
142, 66, 240, 177, 159, 66, 2, 0, 0, 112, 66, 0,
0, 240, 66, 2, 1, 42, 66, 66, 240, 177, 159, 66,
2, 152, 157, 0, 65, 0, 0, 180, 66, 2, 2, 84,
20, 66, 0, 0, 112, 66, 2, 152, 157, 0, 65, 0,
0, 240, 65, 2,
... 18 more items
]
},
{
bytes: Uint8Array(1320) [
1, 0, 0, 112, 66, 0, 0, 0, 0, 2, 176, 216,
115, 66, 22, 130, 140, 190, 2, 0, 0, 112, 66, 241,
53, 105, 192, 2, 80, 39, 108, 66, 19, 130, 140, 190,
2, 0, 0, 112, 66, 0, 0, 0, 0, 0, 1, 0,
235, 142, 66, 32, 156, 32, 66, 2, 168, 254, 140, 66,
36, 181, 33, 66, 2, 176, 134, 141, 66, 111, 110, 37,
66, 2, 125, 103, 143, 66, 101, 125, 36, 66, 2, 0,
235, 142, 66, 32, 156, 32, 66, 0, 1, 77, 236, 223,
66, 0, 0, 240,
... 1220 more items
]
}
]
}4、然后接收到这个消息。SCENE_GRAPH_REPLY 的意思是 “场景图的响应”？
目前不太清楚啥意思，猜测是 design 的画布是懒加载的，这里可能告知哪些画布被加载了。
json
{
type: 'SCENE_GRAPH_REPLY',
ackID: 0,
sceneGraphQueries: [
{ startingNode: { sessionID: 0, localID: 1 }, depth: 0 },
{ startingNode: { sessionID: 0, localID: 0 }, depth: 1 }
]
}5、接收消息，大概是告知当前的用户信息。
json
{
type: 'USER_CHANGES',
userChanges: [
{
sessionID: 4,
stableSessionID: 'e0f5fc1599477fb7d11f8e7d20860315d6c3fbcc',
connected: true,
name: 'xigua',
color: {
r: 0.9490196108818054,
g: 0.2823529541492462,
b: 0.13333334028720856,
a: 1
},
imageURL: 'https://www.gravatar.com/avatar/2702636db87603d3eef0f61c1cdd40a5?size=240&default=https%3A%2F%2Fs3-alpha.figma.com%2Fstatic%2Fuser_x_v2.png',
deviceName: 'editor',
userID: '1166195885685703702',
canWrite: true,
connectedAtTimeS: 2820
}
]
}6、接收消息，告知了一些信息
json
{
type: 'SIGNAL',
signalName: 'server-side-load-time-metadata',
signalPayload: {"docNotInitiallyDecoded":false,"figFileNodeCount":5,"firstConnectionSessionId":1,"incremental":true,"initialNodeCountFromServer":5,"initialQueryGraphDuration":0,"lastCheckpointSize":294,"migrationRanInSession":"DidNotRun","mpConnectionOpenToAfterNodeChangesMs":480,"mpConnectionOpenToJoinStartMs":480,"nodeChangeSendMethod":"default","numMultiplayerConnections":1,"rolloutMigrationRanInSession":"DidNotRun"}'
}signalPayload 是个 json 字符串，我们格式化一下：
json
{
type: "SIGNAL",
signalName: "server-side-load-time-metadata",
signalPayload: {
docNotInitiallyDecoded: false,
figFileNodeCount: 5,
firstConnectionSessionId: 1,
incremental: true,
initialNodeCountFromServer: 5,
initialQueryGraphDuration: 0,
lastCheckpointSize: 294,
migrationRanInSession: "DidNotRun",
mpConnectionOpenToAfterNodeChangesMs: 480,
mpConnectionOpenToJoinStartMs: 480,
nodeChangeSendMethod: "default",
numMultiplayerConnections: 1,
rolloutMigrationRanInSession: "DidNotRun",
},
}7、接收消息，服务端告知加入结束。
大概是初始化完成的意思？
json
{ type: 'JOIN_END' }8、发送消息，告知当前客户端的信息。
如：
- viewport 视口信息；
- 在哪个画布；
- 选中了什么图形。
json
{
type: 'USER_CHANGES',
userChanges: [
{
sessionID: 0,
viewport: {
canvasSpaceBounds: { x: -246, y: -678, w: 690, h: 1041 },
pixelPreview: false,
pixelDensity: 1,
canvasGuid: { sessionID: 0, localID: 1 }
},
selection: []
}
],
sentTimestamp: 1761838569120n
}9、发送消息，广播，当前客户端没有播放音乐。
（figjam 貌似是可以播放音乐的）
json
{
type: 'CLIENT_BROADCAST',
broadcasts: [
{
sessionID: 0,
music: {
isPaused: true,
messageID: 0,
songID: '',
lastReceivedSongTimestampMs: 0,
isStopped: true
}
}
],
sentTimestamp: 1761838569123n
}10、接收消息，但是意义不明
json
{
type: 'SIGNAL',
signalName: 'reconnect-key',
signalPayload: 'f151d3c2220d0921219e0d87b1f0828c01670e29'
}11、接收消息，告知重连序号？
{
type: 'SIGNAL',
signalName: 'reconnect-sequence-number',
signalPayload: '51'
}12、发送消息，客户端渲染完成。
json
{
type: 'CLIENT_RENDERED',
sentTimestamp: 1761840388025n,
clientRenderedMetadata: {
loadID: 'mhdm9ytf',
trackingSessionId: 'MqB3RDpCQTYgBGH4',
trackingSessionSequenceId: 76,
reconnectID: '0'
}
}13、接收消息，没有播放 music。
注意，这里是接收。
json
{
type: 'CLIENT_BROADCAST',
broadcasts: [
{
sessionID: 0,
music: {
isPaused: true,
messageID: 0,
songID: '',
lastReceivedSongTimestampMs: 0,
isStopped: true
}
}
]
}14、接收一个意义不明的广播。
json
{
type: 'CLIENT_BROADCAST',
broadcasts: [ { sessionID: 0, presenter: {} } ]
}15、又接收一个意义不明的广播。
json
{
type: 'CLIENT_BROADCAST',
broadcasts: [ { sessionID: 0, prototypePresenter: {} } ]
}16、接收消息，是关于用户的信息
json
{
type: 'USER_CHANGES',
userChanges: [
{
sessionID: 6,
stableSessionID: '293f4915ef0fd1b87037a495898f0df602ba12b1',
connected: true,
name: 'xigua',
color: { r: 1, g: 0.8039215803146362, b: 0.16078431904315948, a: 1 },
imageURL: 'https://www.gravatar.com/avatar/2702636db87603d3eef0f61c1cdd40a5?size=240&default=https%3A%2F%2Fs3-alpha.figma.com%2Fstatic%2Fuser_x_v2.png',
viewport: {
canvasSpaceBounds: { x: -244, y: -678, w: 686, h: 1041 },
pixelPreview: false,
pixelDensity: 1,
canvasGuid: { sessionID: 0, localID: 1 }
},
selection: [],
deviceName: 'editor',
userID: '1166195885685703702',
canWrite: true,
connectedAtTimeS: 4638
}
]
}至此结束。
